Call rating turns each call record (CDR) into a price on an invoice. PracBill first works out what kind of call it is (the call type), then finds which rate card applies, then prices the call from that card. This page explains the pieces and how they fit; for building a card step by step see Create a rate card.
¶ How a call is rated
| Step | What PracBill does |
|---|---|
| 1. Match the service | Finds the service the call belongs to using the CDR fields the call type names (account code, caller ID, destination or DID). Calls that match no service land in Telco → Exception Calls. |
| 2. Match a call type | Tests every call type's patterns against the CDR. Where several match, the highest Priority wins. |
| 3. Pick the rate card | Uses the most specific card it can find (see the order below). |
| 4. Price the call | Rounds the duration up to the card's billing increment, then applies the rate line for that call type: per-minute rate or flat price, flagfall, free minutes, minimum and maximum cost. |
¶ Which rate card wins
| Order | Rate card | Set where |
|---|---|---|
| 1 (most specific) | Service custom rate | Call Rates on the service, under Billing Options |
| 2 | Customer custom rate | Call Rates on the customer |
| 3 | Service type default | Call Rates on the service type |
| 4 | Department default | Department settings |
| 5 (fallback) | Global default | PracBill's built-in card |
¶ Call types
Call types classify traffic: mobile, national, 13/1300/1800, international, inbound, data, SMS. Rates hang off call types, so set them up before building rate cards.

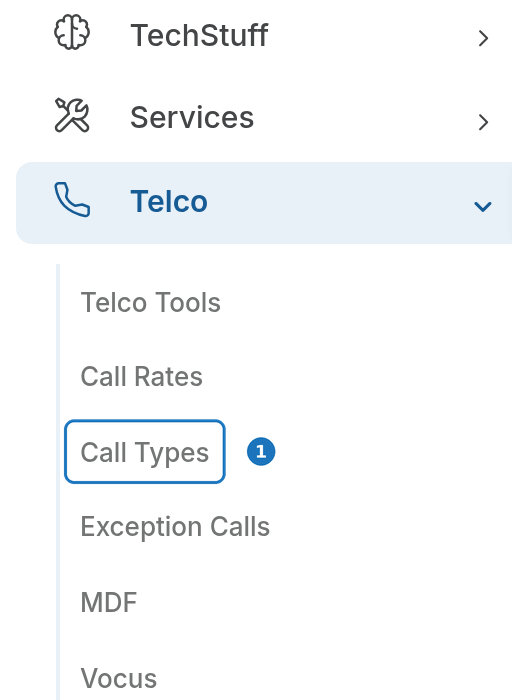

- In the sidebar open Telco, then click Call Types.

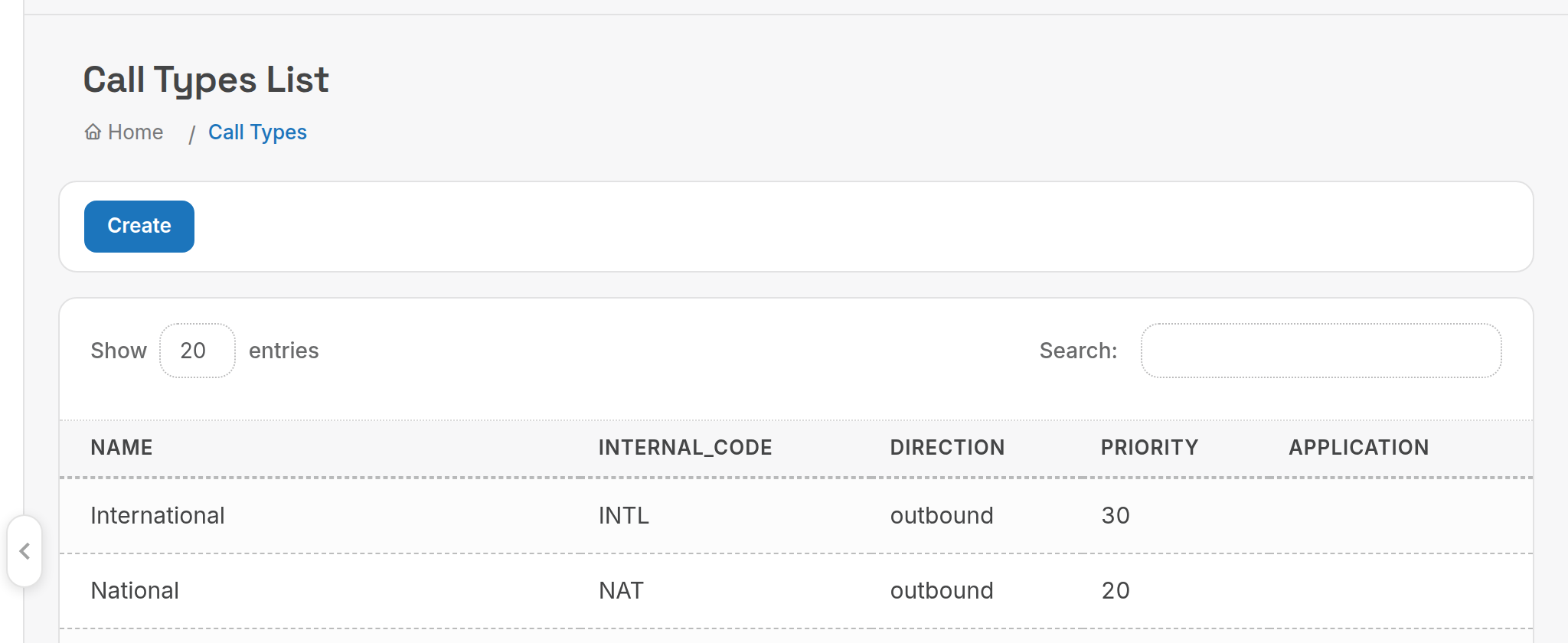

- Click Create. The list shows each type's name, internal code, direction, priority and application.

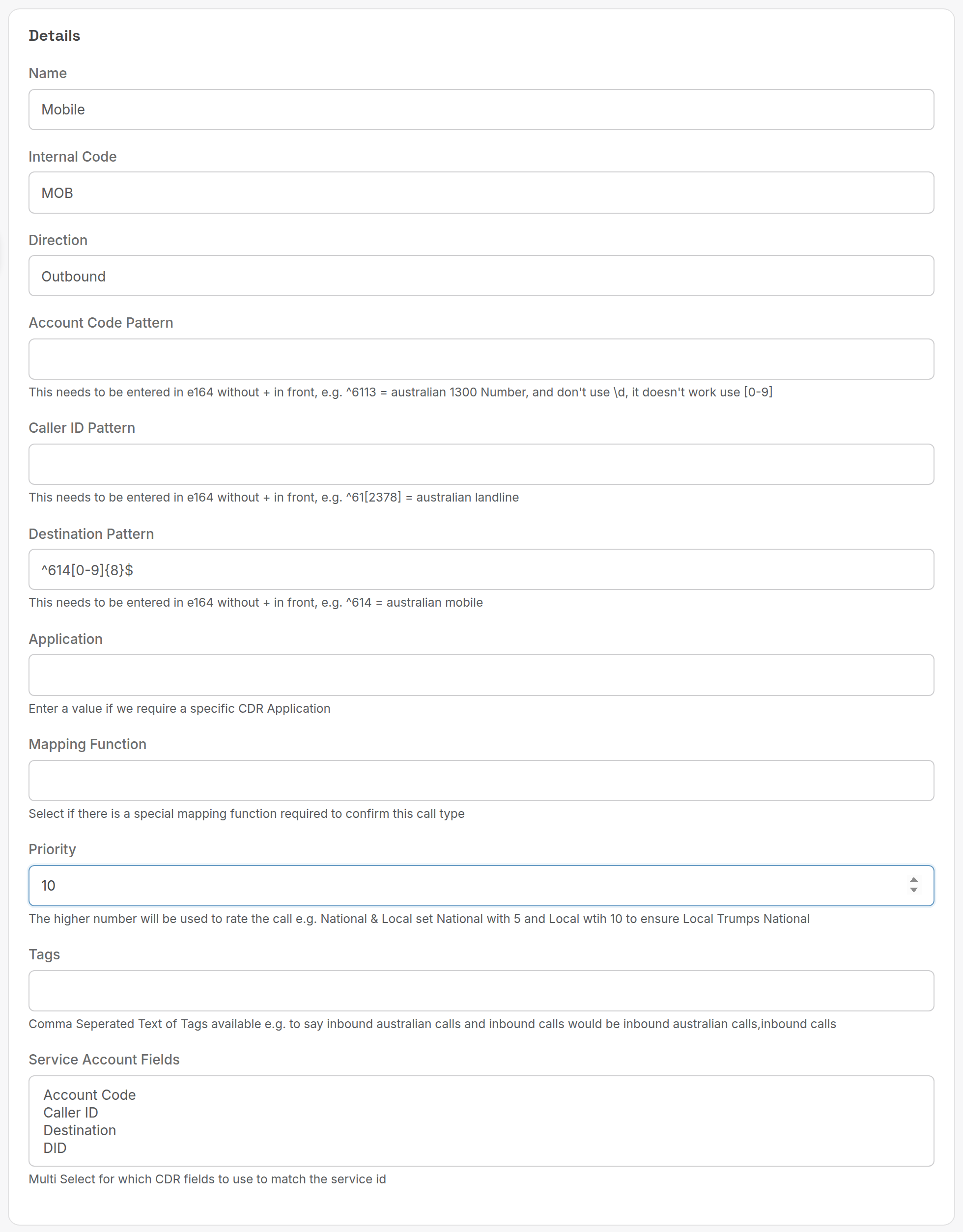

- Fill in the Details and click Save. The example is an Australian mobile call type.
| Field | What it does |
|---|---|
| Name / Internal Code | Name shown on rate lines and invoices; short code used in reports. |
| Direction | Inbound or Outbound. |
| Account Code Pattern / Caller ID Pattern / Destination Pattern | Regular expressions (PCRE) tested against those CDR fields. Numbers are in E.164 without the plus: ^614 is an Australian mobile, ^61[2378] a landline, ^6113 a 1300 number. Use [0-9], not \d. |
| Application | Only match CDRs with this application value, for example DATA or Live Answering. |
| Mapping Function | Extra check for special cases: Local Call, Inbound Call Diversion, Ensure Destination is Different to account. |
| Priority | When several types match, the higher number wins. Give Local 10 and National 5 so local calls rate as local. |
| Tags | Comma-separated tags for grouping in reports. |
| Service Account Fields | Which CDR fields (Account Code, Caller ID, Destination, DID) identify the service the call belongs to. |
¶ Pattern cheat-sheet
| Code | Meaning | Example |
|---|---|---|
^ |
Outside [ ]: match the start of the value |
^61 matches 61383709020 |
[ ] |
Any one of the characters listed | ^61[23] matches 6138379020 and 61299998888 |
[^ ] |
Inside [ ]: any character except those listed |
^61[^4] matches 6138379020 and 61299998888 but not mobiles |
{x,n} |
Repeat the previous set x to n times (n optional; {x} means exactly x) |
^614[0-9]{8} matches Australian mobiles such as 61411222333 |
* |
Repeat the previous set 0 or more times | ^613[0-9]* matches any Victorian number |
+ |
Repeat the previous set 1 or more times | ^614[0-9]+ matches Australian mobiles |
( ) |
Group, usually combined with \| |
61([23]\|[78]) matches 6138379020 and 61799998888 but not mobiles |
\| |
Or | ^61[2378]\|Anonymous matches landlines or blocked caller ID |
\ |
Escape a special character | ^test\.com matches test.com |
. |
Any single character | ^.+\.test\.com matches any subdomain of test.com, e.g. www.test.com |
$ |
Match the end of the value | ^614[0-9]{8}$ matches an 11-digit mobile and nothing longer |
\d |
Any digit (works in SIP domain patterns, but use [0-9] in number patterns) |
^614\d{8}$ |
\s |
Any white space | Rarely used |
¶ Rate cards

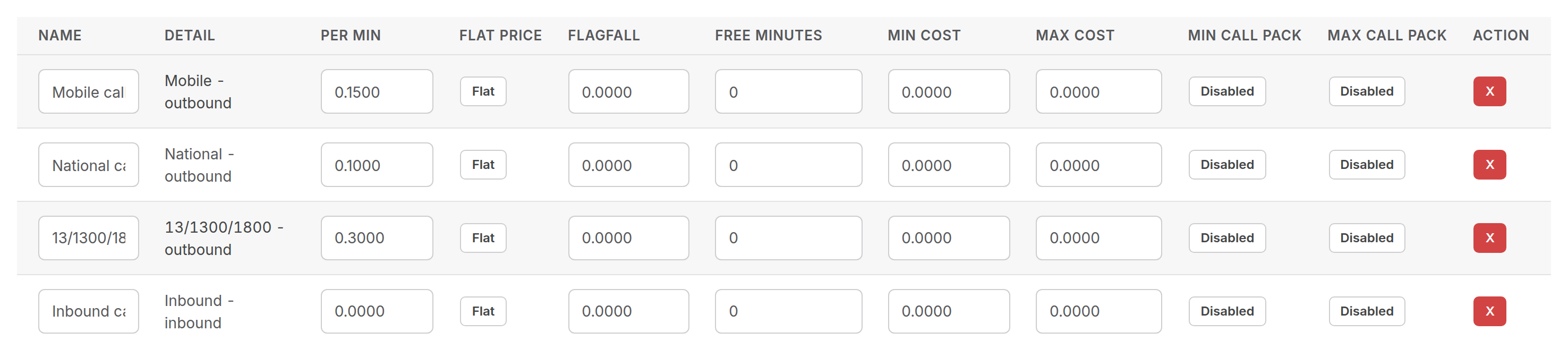

A rate card (Telco → Call Rates) is a named set of rate lines, one per call type, plus international rates. The card's Billing Increment (Per Second, 30 Seconds or 1 Minute) rounds every call up before pricing.
| Column | What it does |
|---|---|
| Name / Detail | Label for the line and the call type it prices. |
| Per Min | Price per minute, ex GST, applied in the billing increment. |
| Flat Price | Charge one fixed price per call instead of per minute. |
| Flagfall | Connection fee added to every call. |
| Free Minutes | Minutes at the start of each call that are not charged. |
| Min Cost / Max Cost | Floor and ceiling for one call's price. |
| Min Call Pack / Max Call Pack | Only use this line while the customer's call pack usage is inside these limits. Disabled by default. |
Example: an inbound service charged 9c a minute with the first 10 minutes of every call free is a line with Per Min 0.09 and Free Minutes 10.
¶ International calls
International calls are priced in one of three ways, in this order.
| Method | How it works |
|---|---|

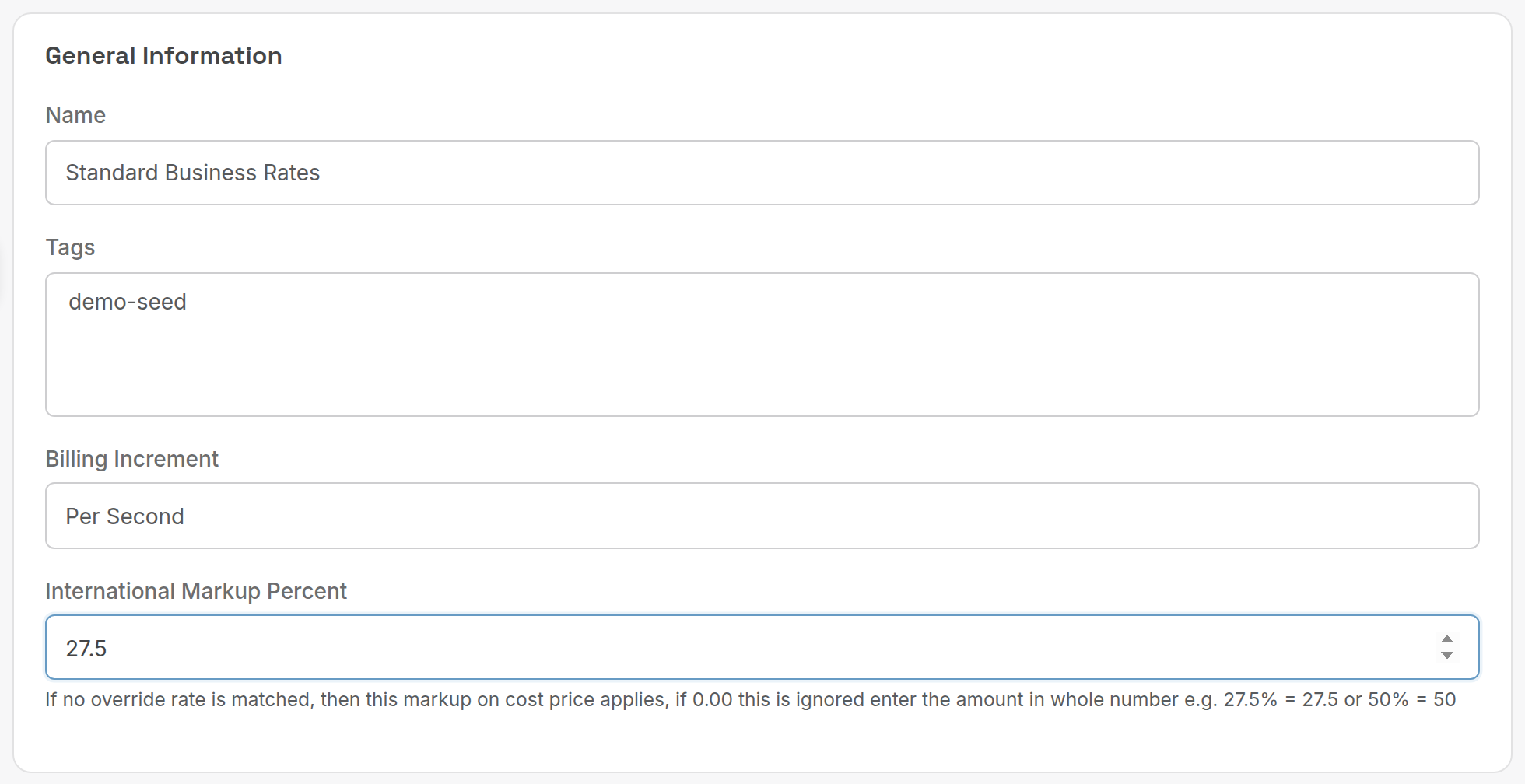

| International Markup | International Markup Percent on the rate card adds a percentage to the cost price passed through from your carrier's CDR. 0.00 turns it off. Enter whole numbers: 27.5 for 27.5%. It takes precedence over custom rates, and protects revenue from out-of-date rate lists. If the CDR carries no charge, PracBill takes the default rate as the cost and marks that up. |
| Custom rates | The International Rates table under the rate lines: one row per Country and Code (dialling prefix) with a Price. |
| Default rates | PracBill's built-in list of rates for every known country code, for customers who make the odd international call. |
To rate international calls at $0 (for an internal service, say), set the markup to
-100.
Best match. International rates are broad by design: if any rate line matches the number, that custom rate is used, and a customer's own rate beats a default rate. Take a call from 61411222333 to 123456789 lasting 60 seconds, with these rate lines:
| Name | Country code prefix | Rate per min |
|---|---|---|
| Default | 12 | 2.00 |
| Default | 1 | 1.00 |
| Customer rate | 1 | 0.50 |
The call matches the default rate for prefix 12 ($2.00 a minute) and the customer rate for prefix 1 ($0.50 a minute). The customer rate is the best match, so the call is rated at $0.50.
¶ Live answering
Live answering (message-taking) is billed per call or per group of calls through a normal rate line on the service's rate card. The CDRs arrive with application Live Answering, so give the call type that Application.
| Rate line field | Meaning for live answering | Example 1 | Example 2 |
|---|---|---|---|
| Free Minutes | Number of calls per group. Blank bills each call individually. | 5 | 0 |
| Per Min | Price per group (or per call). | 6.00 | 1.50 |
| Flagfall | Number of calls included in the base monthly charge. Ignored when Free Minutes is blank. | 1 | 0 |
For 66 calls in a month: example 1 gives (66 - 1) / 5 = 13 groups x $6.00 = $78.00; example 2 gives 66 x $1.50 = $99.00.
The script that loads live-answering charges is installed per department by PracBill support.
¶ Checks before a bill run

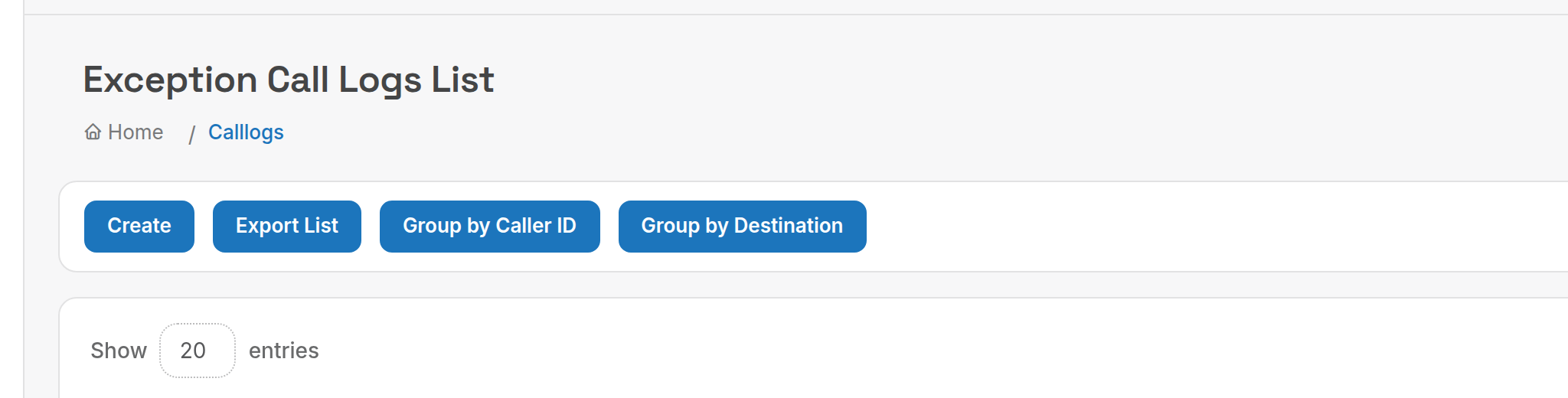

- Telco → Exception Calls lists CDRs that matched no service. Group them by caller ID or destination, then add the missing services or fix the call type patterns.
- Management → Reports → Engineering → Services without Call Rates lists active services of call-type service types that have no rate card of their own. Use it when every service is meant to carry custom rates. Ended or scheduled-to-end services are excluded whatever their end date.
- Rate Calls on a service page re-rates its calls after you change a card.
Related: Create a rate card, Data services, Bill runs.
